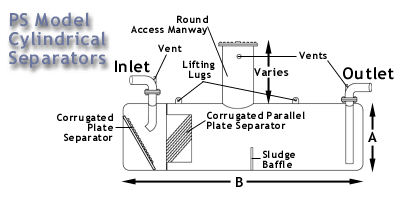

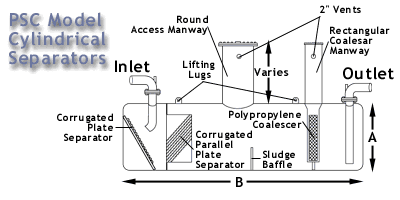

PSC e PS Model Cylindrical Separators
|
|
| MODEL NO. |
VOLUME
Gallons |
FLOW RATES
gpm |
DIMENSIONS |
INLET/OUTLET
150 lb Flange |
| Diameter(A) |
Length(B) |
| PSC-350 |
350 |
55 |
3'-2" |
6'-0" |
4" |
| PSC-550 |
550 |
80 |
3'-6" |
8'-0" |
4" |
| PSC-1000 |
1000 |
130 |
4'-0" |
10'-9" |
6" |
| PSC-2000 |
2000 |
225 |
5'-4" |
12'-0" |
6" |
| PSC-3000 |
3000 |
325 |
5'-4" |
18'-0" |
6" |
| PSC-4000 |
4000 |
400 |
5'-4" |
24'-0" |
8" |
| PSC-5000 |
5000 |
650 |
6'-0" |
24'-0" |
8" |
| PSC-6000 |
6000 |
900 |
6'-0" |
28'-8" |
8" |
| PSC-8000 |
8000 |
1100 |
7'-0" |
28'-0" |
8" |
| PSC-10000 |
10000 |
1450 |
8'-0" |
26'-8" |
10" |
| PSC-12000 |
12000 |
1800 |
8'-0" |
32'-0" |
10" |
| PSC-15000 |
15000 |
2150 |
8'-0" |
40'-0" |
12" |
| PSC-20000 |
20000 |
2850 |
10'-0" |
34'-0" |
12" |
| PSC-25000 |
25000 |
3300 |
6'-0" |
38'-9" |
14" |
| PSC-30000 |
30000 |
4300 |
10'-6" |
46'-6" |
16" |
| PSC-40000 |
40000 |
5400 |
11'-9" |
49'-6" |
18" |
|
 |
| MODEL NO. |
VOLUME
Gallons |
FLOW RATES
gpm |
DIMENSIONS |
INLET/OUTLET
150 lb Flange |
| Diameter(A) |
Length(B) |
| PSC-350 |
350 |
40 |
3'-2" |
6'-0" |
4" |
| PSC-550 |
550 |
65 |
3'-6" |
8'-0" |
4" |
| PSC-1000 |
1000 |
100 |
4'-0" |
10'-9" |
6" |
| PSC-2000 |
2000 |
150 |
5'-4" |
12'-0" |
6" |
| PSC-3000 |
3000 |
225 |
5'-4" |
18'-0" |
6" |
| PSC-4000 |
4000 |
300 |
5'-4" |
24'-0" |
8" |
| PSC-5000 |
5000 |
500 |
6'-0" |
24'-0" |
8" |
| PSC-6000 |
6000 |
650 |
6'-0" |
28'-8" |
8" |
| PSC-8000 |
8000 |
850 |
7'-0" |
28'-0" |
8" |
| PSC-10000 |
10000 |
1175 |
8'-0" |
26'-8" |
10" |
| PSC-12000 |
12000 |
1500 |
8'-0" |
32'-0" |
10" |
| PSC-15000 |
15000 |
1900 |
8'-0" |
40'-0" |
12" |
| PSC-20000 |
20000 |
2500 |
10'-0" |
34'-0" |
12" |
| PSC-25000 |
25000 |
3100 |
10'-6" |
38'-9" |
14" |
| PSC-30000 |
30000 |
4000 |
10'-6" |
46'-6" |
16" |
| PSC-40000 |
40000 |
5000 |
11'-9" |
49'-6" |
18" |
|
